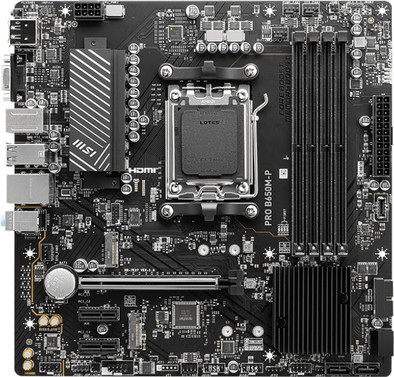

MSI PRO B650M-P
Similar and better products
- Current product
-
MSI PRO B650M-P
-
126,-
-
165,-
-
141,-
-
120,-
-
190,-
- AM5 (7th gen AMD)
- AM5 (7th gen AMD)
- AM4 (3rd gen AMD), AM4 (5th gen AMD)
- AM4 (3rd gen AMD), AM4 (5th gen AMD)
- AM5 (7th gen AMD)
- AMD B650
- AMD B650
- AMD B550
- AMD B550
- AMD B650
- MicroATX
- ATX
- ATX
- ATX
- ATX
Product information
Pros and cons
According to our motherboard expert
- Thanks to the AM5 socket, the motherboard supports the 5th generation Ryzen processors from AMD.
- With the 4 DIMM slots with DDR5 RAM up to 7,200 MHz, you can easily play large games.
- The motherboard doesn't have WiFi, so you can't wirelessly connect your computer to the internet.
Description
Tips for using this product
Read our tips and find out all about how to set up your product and use it the right way.
Included by default
- Manual (9.53 MB)
- M.2 clamp (2x)
- SATA cable
- I/O backplate
Specifications
Product
- Product number
- 954562
- Manufacturer code
- 7E27-001R
- Brand
- MSI
- Warranty
- 3 years
- Processing of your defect
- Via Coolblue
- Old product returned for free
General properties
- Compatible with Windows version
- Windows 10, Windows 11
- TPM (Trusted platform module)
- Suitable casings
- Full Tower, Mid Tower, Mini Tower
- Form factor (motherboards)
- MicroATX
Chipset properties
- Chipset brand
- AMD
- Motherboard chipset
- AMD B650
- Socket (CPU)
- AM5 (7th gen AMD)
- Support for overclocking
- Chipset cooler (motherboards)
- Passive
Memory slot properties
- Total number of RAM slots
- 4
- Memory type
- DDR5
- Memory speed
- 7200 MHz
- Maximum memory speed
- 7200 Hz
- Maximum internal memory
- 256 GB
- Number of memory channels
- Dual channel (2)
PCIe connectors
- PCI Express x1 slots
- 2
- Version PCIe x1 slots
- PCIe 3.0
- PCI Express x16 slots
- 1
- Number of PCIe 4.0 (x16/x16) connectors
- 1
Storage properties
- Supported M.2 SSD formats
- 22x80mm
- Nubmber of M.2 connectors
- 2
- Number of cooled M.2 SSD slots
- 0
- Number of M-key (PCIe 4.0) slots
- 2
- Number of SATA connectors
- 4
WiFi and Bluetooth properties
- Built-in WiFi
- Bluetooth
Video connections
- DisplayPort connector
- Number of Female Standard DisplayPort 1.4 ports
- 1
- HDMI connector
- Number of Female HDMI type A 2.1 ports
- 1
- Thunderbolt connector
- DVI connector
- VGA connector
- Number of female standard VGA ports
- 1
USB connectors
- USB-C ports back panel
- USB-A ports back panel
- Number of USB-A 2.0 (480Mbps) ports back panel
- 4
- Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel
- 2
- Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel
- 2
Audio and Ethernet connectors
- Headphone jack
- Microphone connector
- Number of microphone connectors
- 1
- Ethernet port
- Number of 2.5Gbps Ethernet ports
- 1
- Digital optical connector
- Audio processor
- Realtek ALC897
Power connectors
- Fan headers
- Number of 4-pin CPU fan headers
- 1
- Number of 4-pin system fan headers
- 3
- Number of 4-pin CPU water cooling fan headers
- 1
- Type of power connector for motherboard
- 24-pin ATX connector
- RGB headers
- Number of RGB headers
- 4
- USB headers on the motherboard
- Number of USB 2.0 (480Mbps) headers on the motherboard
- 2
- Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard
- 1
- 1
Other connectors
- USB-A ports on the motherboard
- 0
- BIOS flash button on the motherboard
- Clear CMOS button on the motherboard
- Power button on the motherboard
RGB lighting
- RGB lighting
- Zones separately lit
