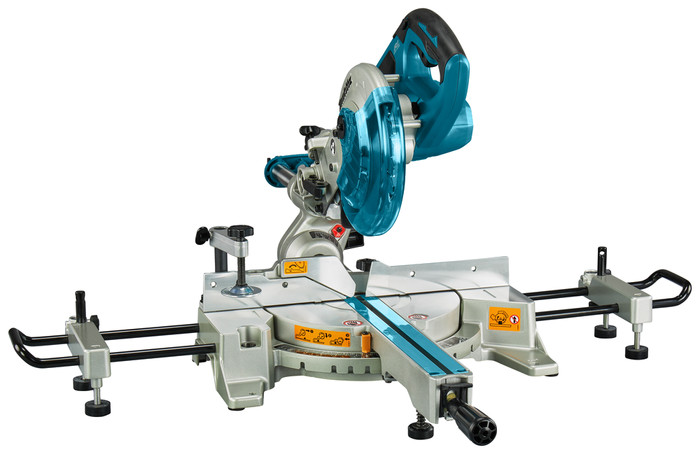

Makita DLS714NZ (without battery)
Choose your radial arm saw: 190 mm |
Nee |
Nee
Choose your radial arm saw
653,-
Limited supply, order now
Complete your purchase
Product information
Pros and cons
According to our radial arm saw expert
- The radial arm saw works on 2 batteries, so you don't have to hassle with cables or extension cords.
- Thanks to the table extension, your saw reach is larger and large workpieces remains in place.
- Only 1 saw blade is included.
Description
Tips for using this product
Read our tips and find out all about how to set up your product and use it the right way.
Included by default
- Manual (2.34 MB)
- Dust bag
- Table extension holder
- Adjustment angle radial arm saw/plane
- Hex key 5mm
- Bar clamp vertical
- Table extension
- Saw blade wood
Collect points and choose a gift
Makita LXT 18V accu platform
Similar and better products
- Current product
-
Makita DLS714NZ (without battery)
-
653,-
-
867,-
-
801,-
-
632,-
-
655,-
- 190 mm
- 250 mm
- 260 mm
- 254 mm
- 254 mm
- None
- Shadow line
- Laser guide
- Laser guide
- Laser guide
- 52 mm
- 76 mm
- 91 mm
- 90 mm
- 90 mm
Specifications
Product
- Product number
- 948307
- Manufacturer code
- DLS714NZ
- Brand
- Makita
- Warranty
- 2 years
- Processing of your defect
- Via Coolblue
- Old product returned for free
Radial arm saw functions
- Speed
- 5700 rpm
- Pull function
- Table extension
- Softstart
Miter options
- Tiltable saw head
- Tiltable to both sides
- Maximum saw blade incline left
- 45 °
- Maximum saw blade incline right
- 5 °
- Maximum cutting depth 90° (straight)
- 52 mm
- Maximum cutting depth 45° (slant)
- 52 mm
- Maximum cutting width 90° (straight)
- 300 mm
- Maximum cutting width 45° (slant)
- 212 mm
Cutting line indication
- Conductor
- Cutting line indication
- None
- Power source conductor
- Via battery
Dust extraction
- Connection for vacuum
- Type of dust extraction
- Connection for vacuum , Dust bag/cup
Power supply
- Power supply type
- Rechargeable battery
- Battery / battery voltage
- 36 V
- Required battery/battery voltage (device)
- 36 V
- Type of battery
- Specific battery
- Battery platform
- Makita LXT 18V
- Battery included
- Number of batteries included
- 0
Saw blade properties
- Saw blade diameter
- 190 mm
- Diameter arbor hole
- 20 mm
- Includes saw blade
- Suitable for (surface)
- Hard wood , Laminate, MDF, Metal, Wood
- Number of teeth (numerical)
- 24
- Saw blade thickness (numerical)
- 1,6 mm
Physical properties
- Weight
- 13 kg
- Height
- 44,5 cm
- Depth
- 65,5 cm
- Width
- 43 cm
