Written by Rowan

How do you connect your washing machine?

Did you just get a new washing machine? Or are you moving and taking your current washing machine with you? When you connect it, make sure that you remove the transit bolts and level the washing machine. In this article, I'll explain how to connect a washing machine step by step.

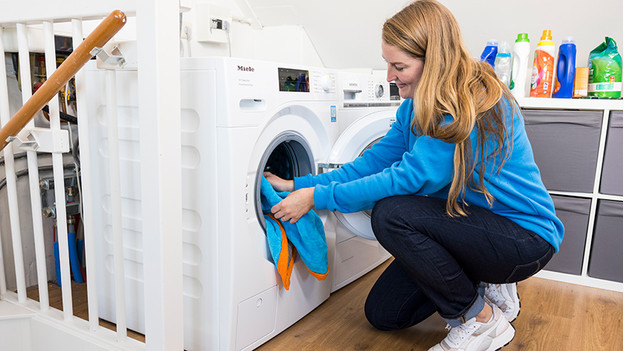

1. Choose the right place

1. Choose the right place

To prevent vibrations and noise, you have to find a right spot for the washing machine. It's best to place the washing machine on a solid surface. Is the washing machine on a wooden floor? Place the washing machine as much into a corner as you can, that's where the floor is the sturdiest. It's also important to place the washing machine close to a water supply, water drain, and earthed socket. And keep the length of the supply hose and drain hose in mind as well.

2. Remove and store the transit bolts

Transit bolts washing machine

On the back of every new washing machine, you'll find transit bolts. These ensure that the drum stays firmly in place when you move it. When you're going to install the washing machine, it's important to remove the transit bolts. If you don't, the washing machine will break when you run a cycle. Check the manual to find out where to find the transit bolts on your washing machine and how to remove them. And always keep the transit bolts in a safe place, because you might need them at some point.

3. Connect the supply hose and drain hose

Connection washing machine

Then, connect the water supply hose to the water supply of the washing machine. The water supply hose is usually connected to the back of the washing machine, at the top right corner. When the hose is connected to the water supply and washing machine, firmly tighten both ends of the hose. Then, open the water supply to check if there's a leak. The water drain hose is often already connected, you only have to insert it in the drain. Make sure you insert it at least 10 and at most 20cm into the drain to prevent leaks. Want to connect the drain hose both your washing machine and dryer to the same drain? Use a Y-piece.

4. Buy a water stopper if you don't have one

Water stopper

If the washing machine doesn't have leak protection, make sure to buy an aqua stop. You can place this between the water supply and water supply hose. An aqua stop stops the water supply when there's too much water running into the washing machine. The aqua stop even stops the water supply if the washing machine is defective. This helps you prevent a leak.

5. Connect the washing machine to an earthed socket

Socket

Now plug the connector of the washing machine in the socket. To prevent a short circuit, use a grounded socket. You can recognize this by the 2 pins at the top and bottom.

6. Connect the pull switch

Pull switch

Did you put your washing machine in the bathroom? Use a pull switch. This is a waterproof electrical connection that allows you to connect your washing machine safely, even in a damp room. With a pull switch, you can prevent a short circuit due to water vapor.

7. Level the washing machine

Level the washing machine

The last step is to level the washing machine. Put the washing machine in its final place. Then, place a spirit level on top of the machine. Usually, a wrench is included with the washing machine to adjust the legs. Adjust the legs until the washing machine is completely level. Do you have a Samsung washing machine? Don't forget to calibrate it.
